TextField (Sample Document)

java.lang.Object
- java.awt.Component
- - java.awt.TextComponent
  - - java.awt.TextField

All Implemented Interfaces:

java.awt.image.ImageObserver, MenuContainer, java.io.Serializable, javax.accessibility.Accessible

public class TextField extends TextComponent
A TextField object is a text component that allows for the editing of a single line of text.

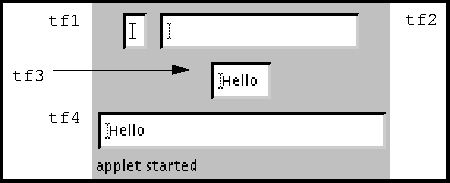

For example, the following image depicts a frame with four text fields of varying widths. Two of these text fields display the predefined text "Hello".

Here is the code that produces these four text fields:
```
 TextField tf1, tf2, tf3, tf4;
 // a blank text field
 tf1 = new TextField();
 // blank field of 20 columns
 tf2 = new TextField("", 20);
 // predefined text displayed
 tf3 = new TextField("Hello!");
 // predefined text in 30 columns
 tf4 = new TextField("Hello", 30);

```
Every time the user types a key in the text field, one or more key events are sent to the text field. A KeyEvent may be one of three types: keyPressed, keyReleased, or keyTyped. The properties of a key event indicate which of these types it is, as well as additional information about the event, such as what modifiers are applied to the key event and the time at which the event occurred.
The key event is passed to every KeyListener or KeyAdapter object which registered to receive such events using the component's addKeyListener method. (KeyAdapter objects implement the KeyListener interface.)
It is also possible to fire an ActionEvent. If action events are enabled for the text field, they may be fired by pressing the Return key.
The TextField class's processEvent method examines the action event and passes it along to processActionEvent. The latter method redirects the event to any ActionListener objects that have registered to receive action events generated by this text field.
Since:

JDK1.0

See Also:
KeyEvent, KeyAdapter, KeyListener, ActionEvent, Component.addKeyListener(java.awt.event.KeyListener), processEvent(java.awt.AWTEvent), processActionEvent(java.awt.event.ActionEvent), addActionListener(java.awt.event.ActionListener), Serialized Form

Nested Class Summary

Nested Classes
Modifier and Type Class and Description

protected class TextField.AccessibleAWTTextField
This class implements accessibility support for the TextField class.
- Nested classes/interfaces inherited from class java.awt.TextComponent
  TextComponent.AccessibleAWTTextComponent
- Nested classes/interfaces inherited from class java.awt.Component
  Component.AccessibleAWTComponent, Component.BaselineResizeBehavior, Component.BltBufferStrategy, Component.FlipBufferStrategy

Nested Classes
Modifier and Type	Class and Description
`protected class`	`TextField.AccessibleAWTTextField` This class implements accessibility support for the `TextField` class.

Field Summary
- Fields inherited from class java.awt.TextComponent
  textListener
- Fields inherited from class java.awt.Component
  BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT
- Fields inherited from interface java.awt.image.ImageObserver
  ABORT, ALLBITS, ERROR, FRAMEBITS, HEIGHT, PROPERTIES, SOMEBITS, WIDTH

Constructor Summary

Constructors
Constructor and Description
`TextField()` Constructs a new text field.
`TextField(int columns)` Constructs a new empty text field with the specified number of columns.
`TextField(java.lang.String text)` Constructs a new text field initialized with the specified text.
`TextField(java.lang.String text, int columns)` Constructs a new text field initialized with the specified text to be displayed, and wide enough to hold the specified number of columns.

Method Summary

Basic Attribute Methods
Modifier and Type Method and Description

javax.accessibility.AccessibleContext getAccessibleContext()
Gets the AccessibleContext associated with this TextField.

Basic Attribute Methods
Modifier and Type	Method and Description
`javax.accessibility.AccessibleContext`	`getAccessibleContext()` Gets the AccessibleContext associated with this TextField.

Event Support Methods
Modifier and Type	Method and Description
`<T extends java.util.EventListener> T[]`	`getListeners(java.lang.Class<T> listenerType)` Returns an array of all the objects currently registered as `FooListener`s upon this `TextField`.
`protected void`	`processEvent(AWTEvent e)` Processes events on this text field.

Layout Methods
Modifier and Type	Method and Description
`Dimension`	`getMinimumSize()` Gets the minumum dimensions for this text field.
`Dimension`	`getPreferredSize()` Gets the preferred size of this text field.
`Dimension`	`minimumSize()` Deprecated. As of JDK version 1.1, replaced by `getMinimumSize()`.
`Dimension`	`preferredSize()` Deprecated. As of JDK version 1.1, replaced by `getPreferredSize()`.

Other Methods
Modifier and Type	Method and Description
`void`	`addActionListener(ActionListener l)` Adds the specified action listener to receive action events from this text field.
`void`	`addNotify()` Creates the TextField's peer.
`boolean`	`echoCharIsSet()` Indicates whether or not this text field has a character set for echoing.
`ActionListener[]`	`getActionListeners()` Returns an array of all the action listeners registered on this textfield.
`int`	`getColumns()` Gets the number of columns in this text field.
`char`	`getEchoChar()` Gets the character that is to be used for echoing.
`Dimension`	`getMinimumSize(int columns)` Gets the minumum dimensions for a text field with the specified number of columns.
`Dimension`	`getPreferredSize(int columns)` Gets the preferred size of this text field with the specified number of columns.
`Dimension`	`minimumSize(int columns)` Deprecated. As of JDK version 1.1, replaced by `getMinimumSize(int)`.
`protected java.lang.String`	`paramString()` Returns a string representing the state of this `TextField`.
`Dimension`	`preferredSize(int columns)` Deprecated. As of JDK version 1.1, replaced by `getPreferredSize(int)`.
`protected void`	`processActionEvent(ActionEvent e)` Processes action events occurring on this text field by dispatching them to any registered `ActionListener` objects.
`void`	`removeActionListener(ActionListener l)` Removes the specified action listener so that it no longer receives action events from this text field.
`void`	`setColumns(int columns)` Sets the number of columns in this text field.
`void`	`setEchoChar(char c)` Sets the echo character for this text field.
`void`	`setEchoCharacter(char c)` Deprecated. As of JDK version 1.1, replaced by `setEchoChar(char)`.
`void`	`setText(java.lang.String t)` Sets the text that is presented by this text component to be the specified text.

Methods inherited from class java.awt.TextComponent
addTextListener, enableInputMethods, getBackground, getCaretPosition, getInputMethodRequests, getSelectedText, getSelectionEnd, getSelectionStart, getText, getTextListeners, isEditable, processTextEvent, removeNotify, removeTextListener, select, selectAll, setBackground, setCaretPosition, setEditable, setSelectionEnd, setSelectionStart

Methods inherited from class java.awt.Component
action, add, addComponentListener, addFocusListener, addHierarchyBoundsListener, addHierarchyListener, addInputMethodListener, addKeyListener, addMouseListener, addMouseMotionListener, addMouseWheelListener, addPropertyChangeListener, addPropertyChangeListener, applyComponentOrientation, areFocusTraversalKeysSet, bounds, checkImage, checkImage, coalesceEvents, contains, contains, createImage, createImage, createVolatileImage, createVolatileImage, deliverEvent, disable, disableEvents, dispatchEvent, doLayout, enable, enable, enableEvents, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, getAlignmentX, getAlignmentY, getBaseline, getBaselineResizeBehavior, getBounds, getBounds, getColorModel, getComponentAt, getComponentAt, getComponentListeners, getComponentOrientation, getCursor, getDropTarget, getFocusCycleRootAncestor, getFocusListeners, getFocusTraversalKeys, getFocusTraversalKeysEnabled, getFont, getFontMetrics, getForeground, getGraphics, getGraphicsConfiguration, getHeight, getHierarchyBoundsListeners, getHierarchyListeners, getIgnoreRepaint, getInputContext, getInputMethodListeners, getKeyListeners, getLocale, getLocation, getLocation, getLocationOnScreen, getMaximumSize, getMouseListeners, getMouseMotionListeners, getMousePosition, getMouseWheelListeners, getName, getParent, getPeer, getPropertyChangeListeners, getPropertyChangeListeners, getSize, getSize, getToolkit, getTreeLock, getWidth, getX, getY, gotFocus, handleEvent, hasFocus, hide, imageUpdate, inside, invalidate, isBackgroundSet, isCursorSet, isDisplayable, isDoubleBuffered, isEnabled, isFocusable, isFocusCycleRoot, isFocusOwner, isFocusTraversable, isFontSet, isForegroundSet, isLightweight, isMaximumSizeSet, isMinimumSizeSet, isOpaque, isPreferredSizeSet, isShowing, isValid, isVisible, keyDown, keyUp, layout, list, list, list, list, list, locate, location, lostFocus, mouseDown, mouseDrag, mouseEnter, mouseExit, mouseMove, mouseUp, move, nextFocus, paint, paintAll, postEvent, prepareImage, prepareImage, print, printAll, processComponentEvent, processFocusEvent, processHierarchyBoundsEvent, processHierarchyEvent, processInputMethodEvent, processKeyEvent, processMouseEvent, processMouseMotionEvent, processMouseWheelEvent, remove, removeComponentListener, removeFocusListener, removeHierarchyBoundsListener, removeHierarchyListener, removeInputMethodListener, removeKeyListener, removeMouseListener, removeMouseMotionListener, removeMouseWheelListener, removePropertyChangeListener, removePropertyChangeListener, repaint, repaint, repaint, repaint, requestFocus, requestFocus, requestFocusInWindow, requestFocusInWindow, reshape, resize, resize, revalidate, setBounds, setBounds, setComponentOrientation, setCursor, setDropTarget, setEnabled, setFocusable, setFocusTraversalKeys, setFocusTraversalKeysEnabled, setFont, setForeground, setIgnoreRepaint, setLocale, setLocation, setLocation, setMaximumSize, setMinimumSize, setName, setPreferredSize, setSize, setSize, setVisible, show, show, size, toString, transferFocus, transferFocusBackward, transferFocusUpCycle, update, validate

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Constructor Detail
  - TextField

    public TextField() throws HeadlessException

    Constructs a new text field.

    Throws:

    HeadlessException - if GraphicsEnvironment.isHeadless() returns true.
    See Also:
    GraphicsEnvironment.isHeadless()
  - TextField

    public TextField(java.lang.String text) throws HeadlessException

    Constructs a new text field initialized with the specified text.

    Parameters:
    text - the text to be displayed. If text is null, the empty string "" will be displayed.

    Throws:

    HeadlessException - if GraphicsEnvironment.isHeadless() returns true.
    See Also:
    GraphicsEnvironment.isHeadless()
  - TextField

    public TextField(int columns) throws HeadlessException

    Constructs a new empty text field with the specified number of columns. A column is an approximate average character width that is platform-dependent.

    Parameters:
    columns - the number of columns. If columns is less than 0, columns is set to 0.

    Throws:

    HeadlessException - if GraphicsEnvironment.isHeadless() returns true.
    See Also:
    GraphicsEnvironment.isHeadless()
  - TextField

    public TextField(java.lang.String text, int columns) throws HeadlessException

    Constructs a new text field initialized with the specified text to be displayed, and wide enough to hold the specified number of columns. A column is an approximate average character width that is platform-dependent.

    Parameters:
    text - the text to be displayed. If text is null, the empty string "" will be displayed.
    columns - the number of columns. If columns is less than 0, columns is set to 0.

    Throws:

    HeadlessException - if GraphicsEnvironment.isHeadless() returns true.
    See Also:
    GraphicsEnvironment.isHeadless()
- Method Detail
  - addNotify

    public void addNotify()

    Creates the TextField's peer. The peer allows us to modify the appearance of the TextField without changing its functionality.

    Overrides:

    addNotify in class TextComponent

    See Also:
    TextComponent.removeNotify()
  - getEchoChar

    public char getEchoChar()

    Gets the character that is to be used for echoing.
    An echo character is useful for text fields where user input should not be echoed to the screen, as in the case of a text field for entering a password. If echoChar = 0, user input is echoed to the screen unchanged.
    A Java platform implementation may support only a limited, non-empty set of echo characters. This function returns the echo character originally requested via setEchoChar(). The echo character actually used by the TextField implementation might be different.

    Returns:
    the echo character for this text field.
    See Also:
    echoCharIsSet(), setEchoChar(char)
  - setEchoChar

    public void setEchoChar(char c)

    Sets the echo character for this text field.
    An echo character is useful for text fields where user input should not be echoed to the screen, as in the case of a text field for entering a password. Setting echoChar = 0 allows user input to be echoed to the screen again.
    A Java platform implementation may support only a limited, non-empty set of echo characters. Attempts to set an unsupported echo character will cause the default echo character to be used instead. Subsequent calls to getEchoChar() will return the echo character originally requested. This might or might not be identical to the echo character actually used by the TextField implementation.

    Parameters:
    c - the echo character for this text field.
    Since:

    JDK1.1

    See Also:
    echoCharIsSet(), getEchoChar()
  - setEchoCharacter

    @Deprecated public void setEchoCharacter(char c)

    Deprecated. As of JDK version 1.1, replaced by setEchoChar(char).
  - setText

    public void setText(java.lang.String t)

    Sets the text that is presented by this text component to be the specified text.

    Overrides:

    setText in class TextComponent

    Parameters:
    t - the new text.
    See Also:
    TextComponent.getText()
  - echoCharIsSet

    public boolean echoCharIsSet()

    Indicates whether or not this text field has a character set for echoing.
    An echo character is useful for text fields where user input should not be echoed to the screen, as in the case of a text field for entering a password.

    Returns:
    true if this text field has a character set for echoing; false otherwise.
    See Also:
    setEchoChar(char), getEchoChar()
  - getColumns

    public int getColumns()

    Gets the number of columns in this text field. A column is an approximate average character width that is platform-dependent.

    Returns:
    the number of columns.
    Since:

    JDK1.1

    See Also:
    setColumns(int)
  - setColumns

    public void setColumns(int columns)

    Sets the number of columns in this text field. A column is an approximate average character width that is platform-dependent.

    Parameters:
    columns - the number of columns.

    Throws:

    java.lang.IllegalArgumentException - if the value supplied for columns is less than 0.
    Since:

    JDK1.1

    See Also:
    getColumns()
  - getPreferredSize

    public Dimension getPreferredSize(int columns)

    Gets the preferred size of this text field with the specified number of columns.

    Parameters:
    columns - the number of columns in this text field.

    Returns:
    the preferred dimensions for displaying this text field.
    Since:

    JDK1.1
  - preferredSize

    @Deprecated public Dimension preferredSize(int columns)

    Deprecated. As of JDK version 1.1, replaced by getPreferredSize(int).
  - getPreferredSize

    public Dimension getPreferredSize()

    Gets the preferred size of this text field.

    Overrides:

    getPreferredSize in class Component

    Returns:
    the preferred dimensions for displaying this text field.
    Since:

    JDK1.1

    See Also:
    Component.getMinimumSize(), LayoutManager
  - preferredSize

    @Deprecated public Dimension preferredSize()

    Deprecated. As of JDK version 1.1, replaced by getPreferredSize().

    Overrides:

    preferredSize in class Component
  - getMinimumSize

    public Dimension getMinimumSize(int columns)

    Gets the minumum dimensions for a text field with the specified number of columns.

    Parameters:
    columns - the number of columns in this text field.
    Since:

    JDK1.1
  - minimumSize

    @Deprecated public Dimension minimumSize(int columns)

    Deprecated. As of JDK version 1.1, replaced by getMinimumSize(int).
  - getMinimumSize

    public Dimension getMinimumSize()

    Gets the minumum dimensions for this text field.

    Overrides:

    getMinimumSize in class Component

    Returns:
    the minimum dimensions for displaying this text field.
    Since:

    JDK1.1

    See Also:
    Component.getPreferredSize(), LayoutManager
  - minimumSize

    @Deprecated public Dimension minimumSize()

    Deprecated. As of JDK version 1.1, replaced by getMinimumSize().

    Overrides:

    minimumSize in class Component
  - addActionListener

    public void addActionListener(ActionListener l)

    Adds the specified action listener to receive action events from this text field. If l is null, no exception is thrown and no action is performed.
    Refer to AWT Threading Issues for details on AWT's threading model.

    Parameters:
    l - the action listener.
    Since:

    JDK1.1

    See Also:
    removeActionListener(java.awt.event.ActionListener), getActionListeners(), ActionListener
  - removeActionListener

    public void removeActionListener(ActionListener l)

    Removes the specified action listener so that it no longer receives action events from this text field. If l is null, no exception is thrown and no action is performed.
    Refer to AWT Threading Issues for details on AWT's threading model.

    Parameters:
    l - the action listener.
    Since:

    JDK1.1

    See Also:
    addActionListener(java.awt.event.ActionListener), getActionListeners(), ActionListener
  - getActionListeners

    public ActionListener[] getActionListeners()

    Returns an array of all the action listeners registered on this textfield.

    Returns:
    all of this textfield's ActionListeners or an empty array if no action listeners are currently registered
    Since:

    1.4

    See Also:
    addActionListener(java.awt.event.ActionListener), removeActionListener(java.awt.event.ActionListener), java.awt.event
  - getListeners

    public <T extends java.util.EventListener> T[] getListeners(java.lang.Class<T> listenerType)
    Returns an array of all the objects currently registered as FooListeners upon this TextField. FooListeners are registered using the addFooListener method.
    You can specify the listenerType argument with a class literal, such as FooListener.class. For example, you can query a TextField t for its action listeners with the following code:
```
ActionListener[] als = (ActionListener[])(t.getListeners(ActionListener.class));
```
    If no such listeners exist, this method returns an empty array.
    Overrides:

    getListeners in class TextComponent

    Parameters:
    listenerType - the type of listeners requested; this parameter should specify an interface that descends from java.util.EventListener

    Returns:
    an array of all objects registered as FooListeners on this textfield, or an empty array if no such listeners have been added

    Throws:

    java.lang.ClassCastException - if listenerType doesn't specify a class or interface that implements java.util.EventListener
    Since:

    1.3

    See Also:
    getActionListeners()
  - processEvent

    protected void processEvent(AWTEvent e)

    Processes events on this text field. If the event is an instance of ActionEvent, it invokes the processActionEvent method. Otherwise, it invokes processEvent on the superclass.
    Note that if the event parameter is null the behavior is unspecified and may result in an exception.

    Overrides:

    processEvent in class TextComponent

    Parameters:
    e - the event
    Since:

    JDK1.1

    See Also:
    ActionEvent, processActionEvent(java.awt.event.ActionEvent)
  - processActionEvent

    protected void processActionEvent(ActionEvent e)
    Processes action events occurring on this text field by dispatching them to any registered ActionListener objects.
    This method is not called unless action events are enabled for this component. Action events are enabled when one of the following occurs:
    - An ActionListener object is registered via addActionListener.
    - Action events are enabled via enableEvents.
    Note that if the event parameter is null the behavior is unspecified and may result in an exception.
    Parameters:
    e - the action event
    Since:

    JDK1.1

    See Also:
    ActionListener, addActionListener(java.awt.event.ActionListener), Component.enableEvents(long)
  - paramString

    protected java.lang.String paramString()

    Returns a string representing the state of this TextField. This method is intended to be used only for debugging purposes, and the content and format of the returned string may vary between implementations. The returned string may be empty but may not be null.

    Overrides:

    paramString in class TextComponent

    Returns:
    the parameter string of this text field
  - getAccessibleContext

    public javax.accessibility.AccessibleContext getAccessibleContext()

    Gets the AccessibleContext associated with this TextField. For text fields, the AccessibleContext takes the form of an AccessibleAWTTextField. A new AccessibleAWTTextField instance is created if necessary.

    Specified by:

    getAccessibleContext in interface javax.accessibility.Accessible

    Overrides:

    getAccessibleContext in class TextComponent

    Returns:
    an AccessibleAWTTextField that serves as the AccessibleContext of this TextField
    Since:

    1.3

Class TextField

Nested Class Summary

Nested classes/interfaces inherited from class java.awt.TextComponent

Nested classes/interfaces inherited from class java.awt.Component

Field Summary

Fields inherited from class java.awt.TextComponent

Fields inherited from class java.awt.Component

Fields inherited from interface java.awt.image.ImageObserver

Constructor Summary

Method Summary

Methods inherited from class java.awt.TextComponent

Methods inherited from class java.awt.Component

Methods inherited from class java.lang.Object

Constructor Detail

TextField

TextField

TextField

TextField

Method Detail

addNotify

getEchoChar

setEchoChar

setEchoCharacter

setText

echoCharIsSet

getColumns

setColumns

getPreferredSize

preferredSize

getPreferredSize

preferredSize

getMinimumSize

minimumSize

getMinimumSize

minimumSize

addActionListener

removeActionListener

getActionListeners

getListeners

processEvent

processActionEvent

paramString

getAccessibleContext
